Description

GEO

With endurance comfort geometry, the X4 offers comfort and aerodynamics. It features flexible/dropped stays for comfort and vibration-dampening, a sporty 71.5° head tube, a comfortable 74° seat tube, a low stand-over height for easy access and a long wheelbase for added stability.

ALLOY TECH

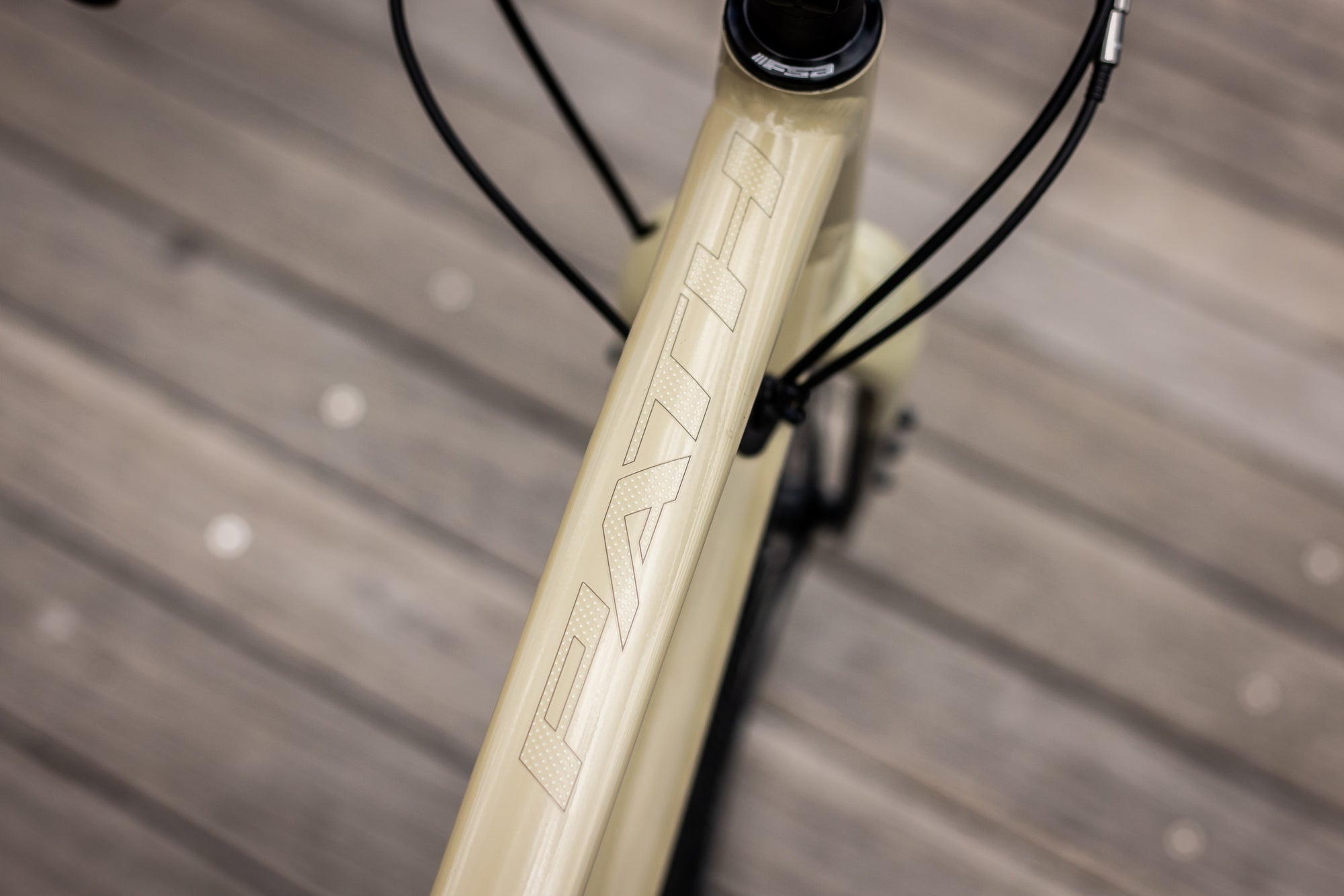

Aluminum has long been the ideal material for bikes and aeroplanes with its incomparable strength-to-weight ratios. Polygon started with 6061 triple-butted tubing and heat treating for strength and durability and finished it off with internal cable routing and a tapered head tube.

TIAGRA 10

Shimano’s 1x10 groupset offers the range and durability you need to tackle just about any terrain with an ample gear range and Japanese reliability.

DISC BRAKES

With mechanical disc brakes, the X4 enjoys smooth, controlled and powerful stopping in all conditions with minimal maintenance and is paired with 160mm rotors.

EFFICIENT

The X4 effortlessly converts watts to acceleration with an aero front end, hydroformed ALX tubing and endurance comfort geo that's as ready as you are.

Components

FRAMESET
FRAME
ALX Gravel
HEADSET
Integrated Headset W/ Sealed Bearing, IS 42/28.6 / IS 52/40
SUSPENSION
FORK
Carbon Rigid, Full Carbon (15kg Load Capacity)
DRIVETRAIN
REAR DERAILLEUR
Shimano Tiagra RD-4700, 10-Speed
SHIFTER
Shimano Tiagra RD-4700, 10-Speed
CRANK
Praxis ALBA, 48-32T
CASSETTE
Shimano Tiagra CS-HG500, 10-Speed, 11-34T
CHAIN
KMC X10, 10-Speed
BRAKES
ROTOR
Tektro 160mm, 6B
WHEELS
REAR HUB
Novatec D792SB, 12x142, 24H, CL
RIM
Alloy Double Wall, FV, 24H , 622x19, H;30mm, Tubeless Tape Installed *
TYRE
Vee Tire Co Speedster, 700x35C, DCC Compound, Tubeless ready
CONTACT POINTS
HANDLEBAR
Entity Sport, 121mm drop x 74mm reach x 16° flare
SADDLE
Entity, Steel ø7mm
SEATPOST
Entity Sport, 27.2x350mm
STEM
Entity Sport, 31.8mm
WEIGHT
BIKE WEIGHT
22.9 lbs (Size L)

Geometry

  S M L XL
Height (cm) 4'11" - 5'4" 5'4" - 5'9" 5'9" - 6'2" 6'2" - 6'5"
(A) Seat Tube Length 430 470  515 560
(B) Seat Tube Angle 74.5  74  73.5  73
(C) Effective Seat Tube Angle 74.5  74  73.5  73
(D) Head Tube Length 140  160 190  220
(E) Head Tube Angle 70  71.5  71.8 72
(F) Effective Top Tube 525 550  580  610
(G) Bb Height 276.5  276.5  276.5  276.5
(H) Bb Offset 78 78  78  78
(I) Chainstay Length 425  425  425  425
(J) Wheelbase 1016.9 1022.8  1044.9  1067.5
(K) Frame Reach 367.2 379.7  395.3  410.4
(L) Frame Stack 568.9 593.8  623.5  652.8
(M) Standover Height 687.5 726  768.41  809.9
Handlebar Width  420 420 440 440
Stem Length 80 80 90 90

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4

Pre-Ride Check
